Basic Info.
Sensor
Milimeter Wave Radar
Technology
Wireless
Detection Target
Animal, Human, Vehicle
Distance Range
1~150m(Human Cross)
Distance Accuracy
±0.75m
Coverage Range
0.5~70000m2
Transmitting Frequency
24.05~24.25GHz
Angle Range
Azimuth:20° Elevation:10°
Power Supply
12V DC
Working Temperature
-40~75ºC
Interface
RJ45, RS485, Relay_out*, Io_out*2, Io_out, LED
Protection Class
IP66
Production Capacity
5000PC/ Month
Product Description
Hunan NovaSky Electronic Technology Co., Ltd.. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search&rescue, high-end security and automotive safety.
Novasky has advanced scientific and technological talents and technologies inthe fields of radar, optoelectronics, software and system engineering.With years of technology accumulation, the company masters key technology including weak life signal detection and tracking algorithms, ground complex environment target detection and tracking algorithm, low-slow small drone detection and tracking algorithm, multi-source perception fusion, electronic reconnaissance and confrontation,etc
System features
Active 3D Protection
Radar video integration, active and three dimensionald security system without blind zone
Edge AI
Integrated with Edge AI deep learning algorithm, realized front end information processing
Multi-target Intelligent Recognition
Multi-target intelligent identifification, fifiltering out false alarm like animal, trees, rain etc
Multi Zone Alarms
According to the real scenario, defense zone is adjustable in the detection range
Easy Deployment
Multiple unit deployed in series connection, realized seamless protection in perimeter security
Strong Environment Adaptability
All-weather, 24/7, adapt to difffferent environment
System Solution
System Solution
Novasky has advanced scientific and technological talents and technologies inthe fields of radar, optoelectronics, software and system engineering.With years of technology accumulation, the company masters key technology including weak life signal detection and tracking algorithms, ground complex environment target detection and tracking algorithm, low-slow small drone detection and tracking algorithm, multi-source perception fusion, electronic reconnaissance and confrontation,etc

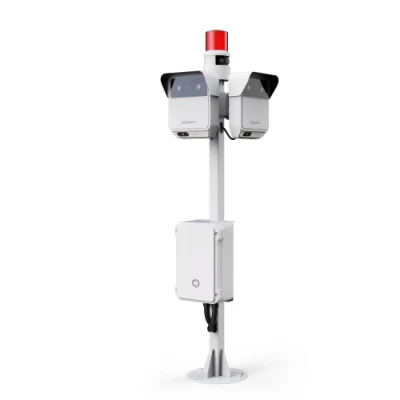

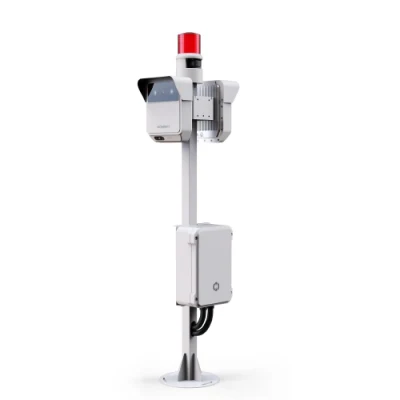

Highly Integrated Radar Camera Surveillance System for Perimeter Security of Prison, Jai
Intelligent multi sensor fusion perimeter security system NSR150VF, mainly consists of intelligent MMW detecting radar, long range IR camera and 3D vision blind area coverage module in an integrated structure.
This system is working based on the MMW detecting radar's continuously scanning of the protection area, integrating with edge AI deep learning algorithm, real ized real time alarm and video tracking of the moving intrusion target in the protection area. It is able to intelligently recognize difffferent intrusion target like human and vehicle, fifiltering out false alarm like animal, trees, rain etc, and supporting unattended operation of perimeter control. It is widely used in high-end perimeter security area such as military, prison, power grid, railway, airport and so on.
System features
Active 3D Protection
Radar video integration, active and three dimensionald security system without blind zone
Edge AI
Integrated with Edge AI deep learning algorithm, realized front end information processing
Multi-target Intelligent Recognition
Multi-target intelligent identifification, fifiltering out false alarm like animal, trees, rain etc
Multi Zone Alarms
According to the real scenario, defense zone is adjustable in the detection range
Easy Deployment
Multiple unit deployed in series connection, realized seamless protection in perimeter security
Strong Environment Adaptability
All-weather, 24/7, adapt to difffferent environment
System Solution
System Solution
https://novasky.en.made-in-china.com/product-list-1.html
Q: What is the MOQ ?
A: 1PC sample order is acceptable, customized product will be negotiated.Q: What is the payment terms?
A: T/T, L/C at sight
Q: What is the warranty time?
A: 12 months
Q: What is the lead time?
A: 3~7 days for sample order, bulk order will be 15~30 days around.
Q: What is the type of shipping?
A: By express, by air and by sea (FEDEX, DHL, TNT, UPS)
