Miran P4500 Absolute Rotary Encoder for Angle Measuring Displacement Sensor

Miran P4500 Absolute Rotary Encoder for precise angle measuring and displacement sensing. Our factory ensures high-quality sensor production.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
P4500
IP Rating
IP56
Certification
ISO
Customized
Non-Customized
Model
P4500
Measurement Stroke
0-355°
Housing Size
36.5mm
Resistance
5kohm
Output Shaft
6mm
Independent Linearity
±0.1%
Temperature
-40ºC~+100ºC
Output Siganl
Voltage Divider
Life Time
100*10^6
Operating Speed
10000rpm
Transport Package
Each Piece Is Packed in a PVC Tube with Foam
Specification
Aluminium Case
Trademark
MIRAN
Origin
China
HS Code
8543709990
Production Capacity
9999999

Product Description


Product Description

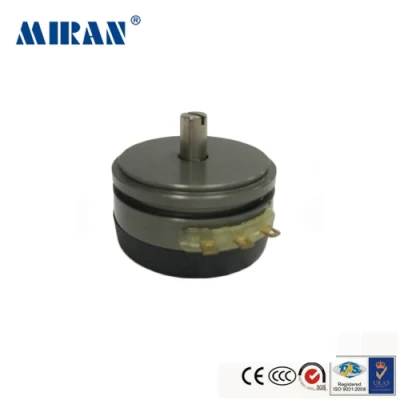

MIRAN P4500 Absolute Rotary Encoder for Angle Measuring Displacement Sensor

Miran P4500 Absolute Rotary Encoder for Angle Measuring Displacement Sensor
