Basic Info.
Model NO.
MD-L100
Production Process
Submersible Type
Feature
Water or Liquid Incompatible with Stainless Steel
Material
Stainless Steel
IP Rating
IP68
Certification
CE
Customized
Customized
Power Supply
12~28V
Transport Package
Carton
Specification
0.5kg
Origin
Shanghai
HS Code
9026100000
Production Capacity
50000 PCS/Year
Packaging & Delivery
Package Size
15.00cm * 15.00cm * 8.00cm
Package Gross Weight
0.500kg
Product Description

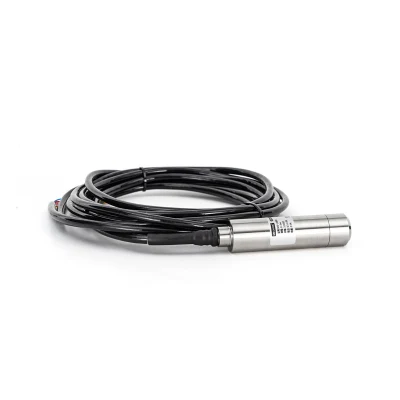

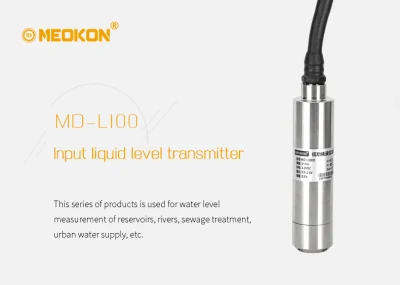

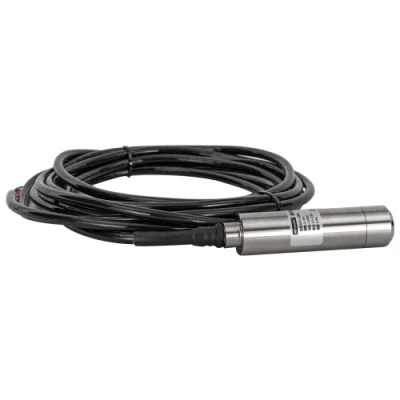

The MD-L100 series liquid level transmitter measures liquid level or water depth based on the principle of hydrostatic pressure. It uses a high-performance isolating membrane diffused silicon sensor,and then uses sophisticated temperature compensation technology and water sealing technology to convert static pressure to standard electricity.Signal output.

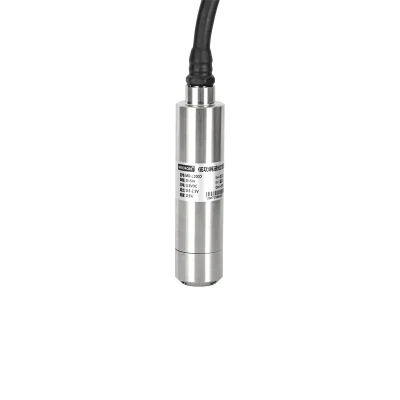

The MD-L100 series liquid level transmitter adopts a 304 stainless steel shell and a shielded polyurethane cable to ensure that it has non-excellent corrosion resistance, reliable for water level measurement in reservoirs,rivers,sewage treatment,urban water supply,etc.
Technical Characteristics:
IP 68 waterproof design
Application:
Civilian pool
Water tank level measurement
Hydrology and water conservancy system
Other liquid level measurement
Marine level measurement
Urban drainage system
Oil level measurement of locomotive oil truck
Water level measurement of rivers and lakes
Specification:
The MD-L100 series liquid level transmitter adopts a 304 stainless steel shell and a shielded polyurethane cable to ensure that it has non-excellent corrosion resistance, reliable for water level measurement in reservoirs,rivers,sewage treatment,urban water supply,etc.
Technical Characteristics:
IP 68 waterproof design
Anti-electromagnetic interference design to ensure the stability of the signal
304 stainless steel shell with polyurethane cable, strong media compatibility
304 stainless steel shell with polyurethane cable, strong media compatibility
12~28V wide power supply
Application:
Civilian pool
Water tank level measurement
Hydrology and water conservancy system
Other liquid level measurement
Marine level measurement
Urban drainage system
Oil level measurement of locomotive oil truck
Water level measurement of rivers and lakes
Specification:
| Range | 0~1m...5m...10m...100m H2O |
| Overload capacity | 200% |
| Optional | Industrial explosion-proof shell |
| Transmission distance | ≥1Km(4-20mA) |
| Accuracy | 0.5%FS |
| Long-term stability | Typical: ±0.2%FS/year |
| Zero temperature drift | Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC |
| Sensitivity temperature drift | Typical: ±0.02%FS/ºC, Max:±0.05%FS/ºC 12~28V(Typical 24V) |
| Power supply | 12~28V(Typical 24V) |
| Output | 4~20mA/RS485 |
| Working temperature | -10~60ºC |
| Compensation temperature | -10~60ºC |
| Storage temperature | -20~85 ºC |
| Electrical protection | Anti-reverse connection protection, over-voltage protection |
| IP rate | IP 68 |
| Measuring medium | Water or liquid incompatible with stainless steel |
| Pressure connection | throw-in |
| Shell material | 304SS |
