Basic Info.
Model NO.
AW-BK901-70
Infrared Sensor Probe Type
Infrared Temperature Sensor
Infrared Sensor Installation
Ceiling
Combustible Gas Detector Model
NA-300
Nature
Conventional
Color
White
Monitoring Distance
40m-100m
Product Name
Beam Motorised Reflective Optical Beam Smoke Detec
Design
OEM ODM
Wiring Method
2 Wire Bus
Certificates
CE RoHS ISO9001 for Beam Smoke Detector
Dimension
206mm*95mm*95 Mm
Place Usage
Warehouse Office Factory
Charactor
High Sensitive
Transport Package
Foam
Specification
CE ROHS ISO9001
Trademark
ASENWARE
Origin
Shenzhen China
HS Code
8531901000
Production Capacity
1000/Year
Product Description

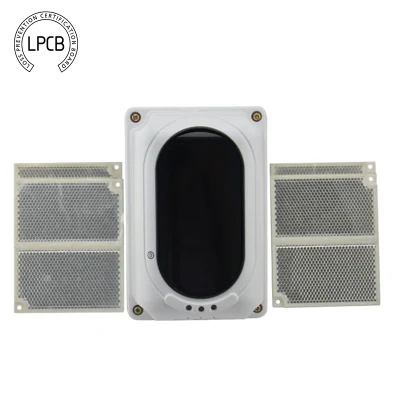

Asenware AW-BK901 Infrared Linear Reflex Smoke Detector Outdoor Distance Infrared Photo Beam Sensor
Outdoor distance infrared photo beam sensor
Description:
The AW-BK901 is a reflective beam Smoke Detector which features advanced motorised technology allowing it to self-align itself to the centre of the reflector when commissioning. Commissioning is a semi-automatic procedure where the unit aligns itself directly onto the centre of the reflector. Once commissioned the detector continually monitors alignment and will automatically realign itself back to the centre of the reflector if any building movement occurs.
The AW-BK901 is ideal for use at the wide areas with high ceiling such as warehouses, large
storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment
factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist
certificate
FAQ
1.Are you manufacturer?
(yes)
2.How do you package?
(Standard export packing including):
1) PEE bag per unit
2) Outside Cartons
3.what kind of shipment?
4. warranty
(two years)
5.Delivery time
usually
Fire control: one week working day
bulk quality: three weeks working days
Emergency lights: two weeks working days
bulk quality: four weeks
FM200: two weeks working day
Fire pump: 25 days
6. technical support
fire alarm and fire
fighting solutions
provider
our project list
▸ FEW RECENT FINISHED PROJECTS
• Indonesia: Government Apartment ( Addressable and Telephone Panel)
• Cambodia: Coal Plant ( FM-200, LPCO2 System, Addressable Panel )
• Kenya: Senior High School ( Addressable and Conventional Panel)
• Bangladesh: Industrial Building ( Addressable Panel )
• Thailand: Ware House ( Addressable Panel with Beam Detectors )
• Laos: Telecommunication Center ( FM-200, Addressable Panel )
• Myanmar: Data Center ( FM-200, Addressable Panel )
Outdoor distance infrared photo beam sensor
Description:
The AW-BK901 is a reflective beam Smoke Detector which features advanced motorised technology allowing it to self-align itself to the centre of the reflector when commissioning. Commissioning is a semi-automatic procedure where the unit aligns itself directly onto the centre of the reflector. Once commissioned the detector continually monitors alignment and will automatically realign itself back to the centre of the reflector if any building movement occurs.
The AW-BK901 is ideal for use at the wide areas with high ceiling such as warehouses, large
storages, shopping malls, leisure centres, exhibition halls, hotel lobbies, printing houses, garment
factories, museums and prisons, as well as places where slight smoke particles or corrosive gas exist
| Specification | |
Order codes | AW-BK901 (8-20M) one reflector AW-BK901(Mid-range 20-40m) one reflector AW-BK901(Mid-range 40-70m) four reflectors AW-BK901(Long range 70-100m)four reflectors |
| Supply Voltage | 20V to 28VDC |
| Supply Current | Standby≤18mA Commission≤55mA Alarm≤33mA |
| Operating Temperature Range | -10 °C to +55 °C |
| Operating Humidity | 0 to 95% Relative Humidity, Non condensation |
| Dimension / Weight | L:190.87 x W:126.87 x H:91.96 mm / 440 gm |
| Alarm Sensitivity Levels | 2.6 dB High Sensitivity 3.4 dB Medium Sensitivity 4.8 dB Low Sensitivity |
| Ingress Protection Rating | IP30 indoorIP66 outdoor |
| Maximum Angular Alignment | ±5° |
| Material / Color | ABS/White |

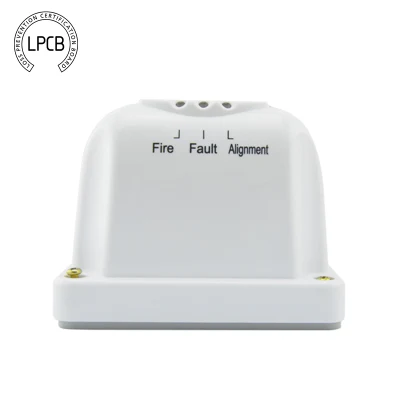

| LED Indicator Guide | Red: Fire ; Yellow: Fault ; Green: Alignment |
