Product Description
I
The main purpose

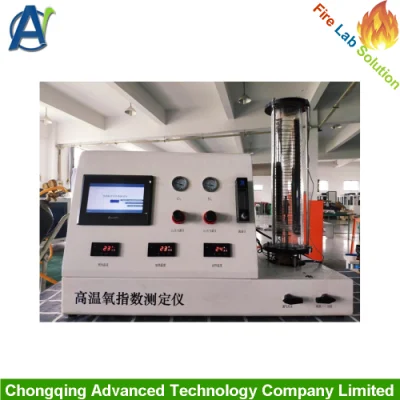

The high-temperature oxygen index tester belongs to the flame retardant series of test equipment, which is used to determine the combustion performance of self-supporting vertical strips or thin sheets of plastic materials with a thickness of 10.5mm under test conditions, or dry vertically supported films or films Determination of combustion behavior of materials.
Model: ISO4589
Applicable standard
International Standard: ISO4589-3:1996 "Oxygen Index Determination of Plastic Combustion Behavior - High Tears Test"
BS2782 Part 143ASTM D 2863
Instrument characteristics
1. Has a combustion cylinder with a heating element and preheater. The temperature in the combustion cylinder is adjustable and controllable.
2. The whole process of the test is controlled by a computer, with a high degree of automation. The operator only needs to input the required oxygen concentration value from the keyboard according to the test requirements, and the instrument will
It can automatically track and adjust to stabilize the oxygen concentration at the set value.
3. Directly detect and display the oxygen concentration value of the sample combustion chamber.
4. The automatic ignition mechanism ensures safe and reliable ignition.
5. It is automatically processed by the computer to display each set of test data and judge the reliability of the obtained test data.
technical indicators
1. Test temperature range: 25°C~150°C;
2. Test temperature control accuracy: ±2°C when ≤125°C, ±3°C when >125°C
3. Oxygen concentration setting range: oxygen concentration value 10%~60% (±0.1%);
4. Oxygen and nitrogen flow can be controlled at the set value, control accuracy: ±0.01L/min, resolution: 0.01L/min;
5. Oxygen concentration step size: can be set from 0.1%;
6. Burning time: 1 second to 300 seconds:
7. Igniter flame height: 15~20mm adjustable;
8. Ignition time: 15s±1s;
9. Quartz glass combustion cylinder size: inner cylinder (inner diameter ≥ 75mm, height ≥ 450mm); outer cylinder (the gap between the inner cylinder and the inner cylinder is between 5mm and 10mm, and the height is the same as the inner cylinder).
Chongqing Advanced Technology Co., Ltd. is a professional supplier which is committed to offer best testing equipment from China for our clients, and our main products are fire testing equipment, petroleum products testing equipment, electrical testing equipment and general laboratory instruments. Our instruments are widely used in various fields: Scientific institutions, colleges, inspection institutions, automotive, power sector, oil& Gas, aerospace, building material, wire and cable, furniture, textile etc. All Advanced Technology′s testing equipment are designed according to international test standards, such as ISO, ASTM, IEC, DIN, EN, GB, JIS, ANSI, UL, TAPPI, AATCC, VDE, CSA, CEN and so on.
Customer Feedback
Germany
USA
Transporation
Packing: standard export carton/ wooden case per set.Delivery method: usually delivered by express or air, other method are also available if necessary.
FAQ
1.What's the delivery time?About 40 days .
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
