Basic Info.
Model NO.
T-OPM100
Product Type
Digital Optical Fiber Laser Power Meter
Measurement Range
+26 ~ -70dBm
Accuracy
± 0.2db
Calibrated Wavelengths
850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm
Resolution
0.01db
Connecting Adapter
FC/PC & 2.5mm Upp, (Option: Sc, St )
Reference Value Storage
Yes
Built-in Vfl ( Optional )
1MW or 10MW or Customize
Data Storage
40 Traces
Optional
Wave ID, Data Transfer, Real Time Monitor
Transport Package
Carton
Specification
CE, SGS, CSI, ISO9000
Trademark
Skycom/ OEM
Origin
Nanjing/Shanghai, China
HS Code
9031801000
Production Capacity
500PCS/Month
Product Description

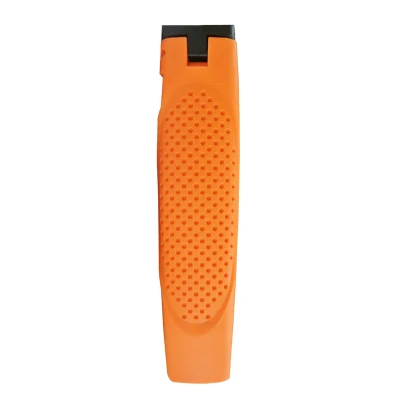

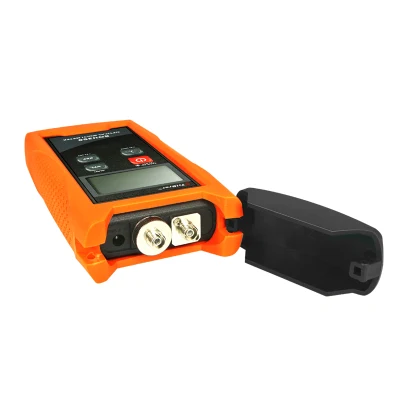

T-OP300 Series Optical Power Meter
Features
FC, SC, ST adapters and 2.5mm UPP
Energy save mode;
Built in VFL (optional)
Reference value storage
850/1300/1310/1490/1550/1625nm
SPECIFICATIONS
| Model | T-OP300T | T-OP300C |
| Measurement Range(dBm) | +10~-70dBm | +26~-50dBm |
| Accuracy * | ± 0.2 dB | |
| Calibrated Wavelengths | 850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm | |
| Resolution | 0.01dB | |
| OPM Connector | 2.5mm UPP and FC interchangeable (SC, ST optional) | |
| VFL Connector | 2.5mm UPP | |
| Reference Value storage | Yes | |
| Auto Power Off | No operation in 10 minutes (can be canceled), Low battery energy | |
| Battery Charge | Yes | |
| Battery Life | Above 100 hours (1800mAH battery) | |
| Power Supply | AA * 2 batteries or AC/DC power supply adapter | |
For 850nm, the Min. Power measurement: -60dBm@OP300T, -40dBm@OP300C
GENERAL SPECIFICATIONS
| Size(H*W*D) | 160mm *75mm * 32mm |
| Weight | about 180g |
| Storage Temperature | -20 -- +60 ºC, < 90%RH |
| Operating Temperature | -10 -- +50 ºC, < 90%RH |
ACCESSORIES
| Standard | Optional |
| Carrying bag*1 | SC interchangeable connector*1 |
| Calibration Certificate*1 | ST interchangeable connector*1 |
| User′s manual*1 | FC male to LC female adapter*1 |
| AC/DC adapter*1 |
