Basic Info.
Model NO.
DR18MI-S200P R2M
Material
Plastic
IP Rating
IP66
Certification
ISO
Customized
Customized
Model
Dr18mi-S200p R2m
Shape
M18 Diameter Cylindrical Sensor
Mounting
Retro Reflective Optical Sensor
Sensing Distance
0-200cm Adjustable
Output
PNP No
Light Source
Infrared Light
Housing
Plastic
Certificate
Ce, RoHS ISO
Power Supply
12-24VDC
Consumption Current
15mA Max
Load Current
100mA Max , 24VDC
Response Time
0.5ms Max
Working Temperature
-10 to 50 Degree
Protection
Reverse Polarit Protection
Features
Sunlight Resistance Photoelectric Switch
Transport Package
Carton
Trademark
F&C
Origin
China
HS Code
8536500000
Production Capacity
5000PCS/Month
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.200kg
Product Description

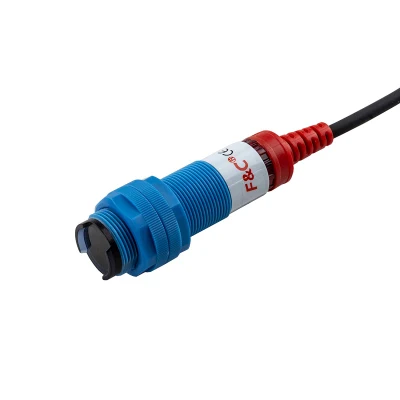

PNP NO 2m Retro-Reflective Photoelectric Optical Sensors Manufacturer
F&C Sensing Technology is a high-tech enterprise, specialized in R&D, manufacturing and marketing industrial automation control sensors which is mainly for limit protection, counting and presence or absence judgement. there are 14 series and around 5000 models available, based on Changsha, Dongguan and Taiwan, F&C sensors and our authorized distributors around the world are dedicated to provide wonderful one-stop-service to all the customers. Our main products include Fiber optic sensor, Fiber Unit, proximity sensor,photoelectric sensor, light curtain, label sensor, pressure switch, magnetic switch, din-rail power supply etc. and producing is strictly correspond with ISO9001, ISO14001 and OHSAS18001.
Capacitive Proximity Sensor factory Office, exhibition, staffs & customers
| Model | DR18MI-S200P R2M |
| Output Method | PNP NO |
| Detection Type | retro reflection photoelectric sensor |
| Standard Detection Object Size | 10cm*10cm(White Paper) |
| Detection Distance | 0-200cm adjustable |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10ºC-50ºC(No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
1. Intelligent Type model, not effected by the angle of detection.
2. Powerful invisible infrared Led light with 10mm spot.
3. A.P.R circuit .
4. Adjustable NO NC output.
5.OEM order accepted.
6. Anti-sunlight and strong light, suitable for strictly mounting environment.
7. Red plastic tail design, better protection for the cable.
8. Full reflection type available, including diffuse reflection type, retro-reflective type and through beam reflective type. photo as below:
