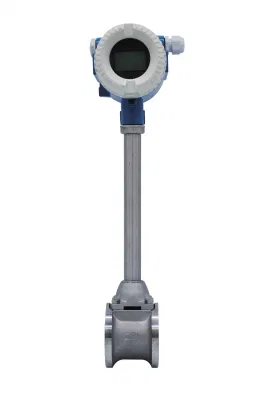

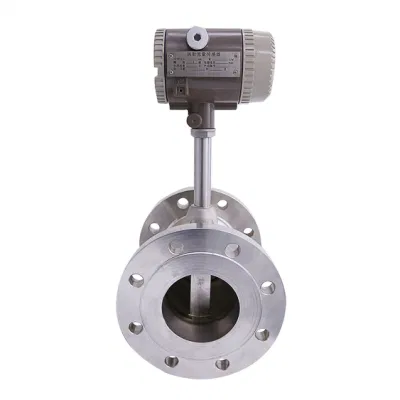

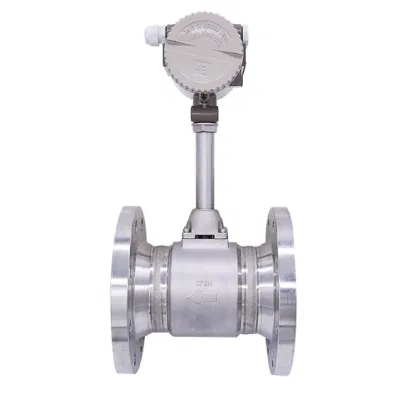

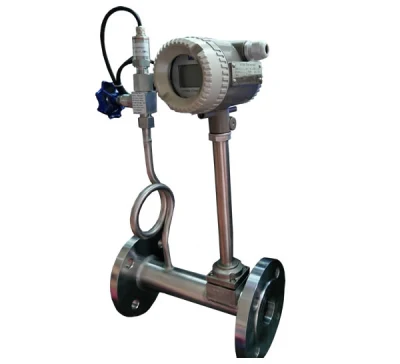

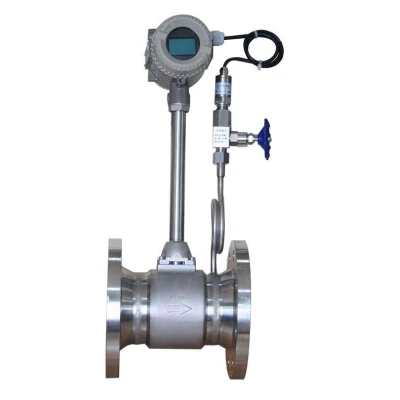

Vortex Flowmeter is based on Carmen Vortex Principle, which adopts piezoelectric crystal as testing components. It is a new kind of stress detecting vortex flowmeter. It has the advantages of wide range rate, high accuracy , low pressure loss , good medium generality , pulse signal output proportional to flow , convenient to connect with computer etc.
Application:
Gas: air,oxygen,carbon dioxide,nitrogen,natural gas,lpg,biogas,etc
Liquid: water,oil,etc
Steam:saturated steam and superheated steam,vapor etc
| Pipe size | 25,40,50,65,80,100,125,150,200,250,300,(300~1000 Insert type) |
Nominal pressure | DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6 Supply agreement) |
Temperature(°C) | Piezoelectric type:-40~260,-40~320;Capacitance type : -40~300, -40~400,-40~450(Supply agreement) |
Body material | 1Cr18Ni9Ti,(Other materials supply agreement) |
Allowable vibration acceleration | Piezoelectric type:0.2g Capacitance type:1.0~2.0g |
Accuracy | ±1%R,±1.5%R,±1FS;Insert type:±2.5%R,±2.5%FS |
Range of | 1:6~1:30 |
Power supply | 24V DC;Battery type:3.6V Battery |
Output signal | Square wave pulse ( not including the battery power supply type ): high level or low level5V,1V; current: 4~ 20mA |
Pressure loss coefficient | In line with the JB / T9249standard Cd = 2.4 |
Explosion proof marks | Intrinsic safety type: Exd IA CT2-T5 flameproof type: Exd CT2-T5 |
Protection grade | The ordinary IP65 diving type IP68 |
Environmental conditions | Temperature - 20~ 55,5% ~ 90% of relative humidity, atmospheric pressure is 86 ~ 106kPa |
Applicable medium | Gas, liquid, steam |
Transmission distance | Three wire system pulse output type: < 300m, two line standard current output type (4 ~ 20mA ): load resistance less than 750ohm |
