Basic Info.
Application
Industrial Production
Type
Probe Type Flow Meter
Measuring Media
Gas
Measuring Principle
Thermodynamic
Measurement Object
Closed Pipeline
Certification
CE, ISO, SGS
Output Type
Pluse, 4-20mA, RS485and GPRS, Hart
Power Supply Type
24VDC or 220VAC
Connection Type
Flange, Plug-in, Thread, Tri-Clamp
Body Material
304ss, 316L
Transport Package
Wooden Box Package or Carton Packing
Specification
680*280*270mm
Trademark
kunkeandao
Origin
Weihai
HS Code
9026100000
Production Capacity
3000 Pieces/Year
Product Description

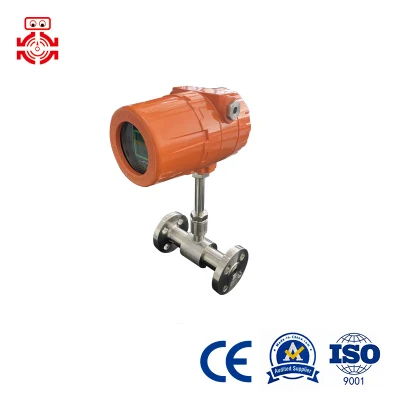

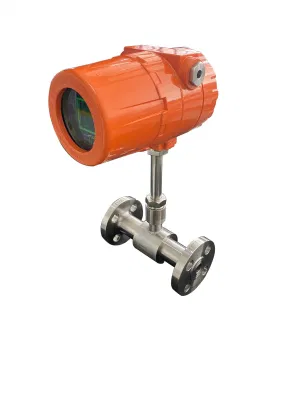

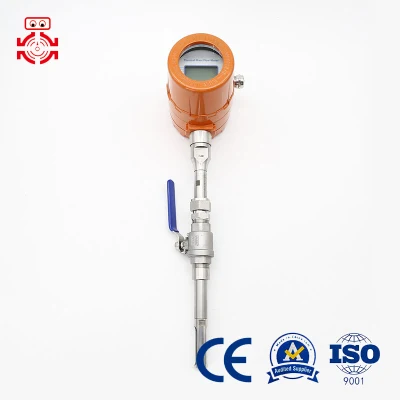

Thermal Gas Mass Flowmeter Micro Flow Compressed Air Oxygen Nitrogen Argon Methane Flowmeter Meter DN50Plug in Type
Product Features :
1.Real mass flow meter, no need for temperature and pressure compensation for gas flow measurement, convenient and accurate measurement.
2.Wide range ratio:1:1000,flow rate as high as 120Nm/s and as low as 0.1Nm/s.
3.Easy to install and maintain. Non-stop production installation and maintenance can be achieved where field conditions permit. (requires special customization)
4.Insensitive to small particles such as dust, suitable for all kinds of single or mixed gas measurement .
1.Real mass flow meter, no need for temperature and pressure compensation for gas flow measurement, convenient and accurate measurement.
2.Wide range ratio:1:1000,flow rate as high as 120Nm/s and as low as 0.1Nm/s.
3.Easy to install and maintain. Non-stop production installation and maintenance can be achieved where field conditions permit. (requires special customization)
4.Insensitive to small particles such as dust, suitable for all kinds of single or mixed gas measurement .
Technical Parameter:
| Fluid | gas without water molecules (except acetylene) |
| Velocity range | 0~60m/s |
| Accuracy | Reading±1%,full range±0.5% |
| Repeatability | full range0.2% |
| Temperature | Environmental conditions:-20ºC~70ºC;Medium temperature:-20ºC~120ºC or -20ºC~350ºC |
| Power | 24VDC/220VAC |
| Output | 4~20mA,pulse |
| Response time | ≤1s |
| temperature coefficient | 0.05%/ºC |
| Communication interface | serial port output RS485,HART |
| Screen content | quantity of heat,flow for short period;total flow |
| Pressure | ≤4.2MPa |
| connection | locking device/ball valve, flanged joint,Flange mounting |
| Explosion proof grade | Exd II CT4 |
| Ingress protection | Sensor IP67;transmitter IP65 |
| Alarm point | Relay dry contact output, can choose the upper limit single alarm or lower limit double alarm |
| Sensor diameter | 3mm/4mm/5mm |
| Probe diameter | 18mm |
| Sensor texture | 1Cr18Ni9Ti;304L;hastelloy C;Ta |
| Probe texture | 1Cr18Ni9Ti;304L;hastelloy C;Ta |
| Shell texture | Dangerous areas to install shell for powder coated aluminum castings |
| Electrical interface | M20X1.5 |
| Pressure loss | Pipe diameter greater than DN80 can be ignored |
Connaction type:
