Basic Info.
Model NO.
Veinasa-D3
Output Type
Uart-Ttl; PWM
Detection Size
1.0-10μm
Concentration Range
0-999μG/M3
Source Voltage
4.9/5/5.1V
Current
70mA
Operating Temperature
-10-60ºC
Transport Package
Covered with Carton Package
Trademark
Veinasa
Origin
China
Packaging & Delivery
Package Size
20.00cm * 18.00cm * 18.00cm
Package Gross Weight
1.500kg
Product Description

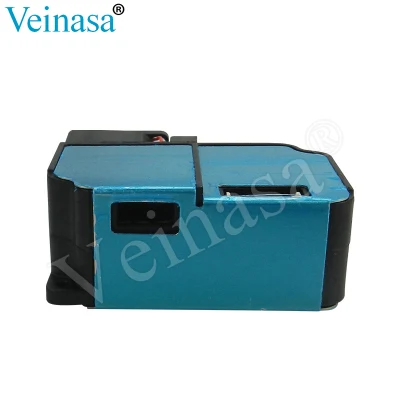

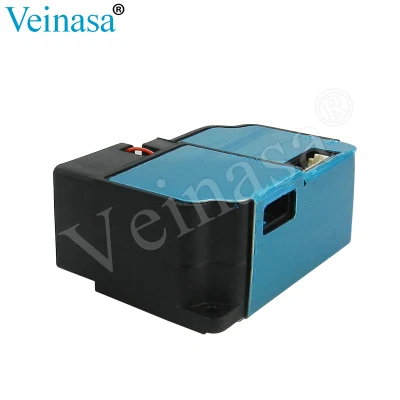

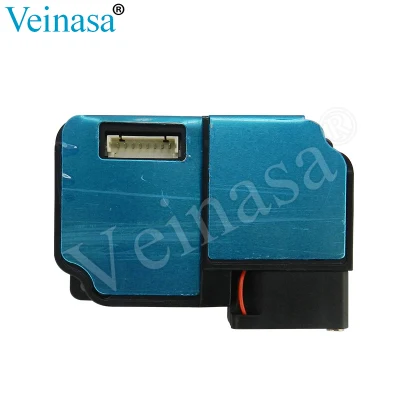

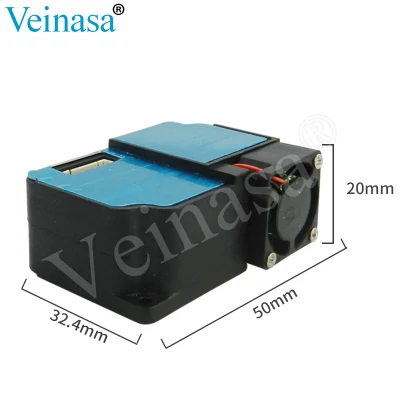

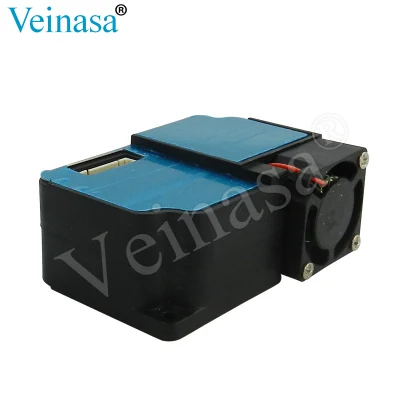

Veinasa-D3 Dust Sensor PM2.5 PM10 Environmental Air Quality Monitor Plantower Optical Dust Sensor Particle Counter
Veinasa-D3 is one type of laser particle sensor module. It can measure the quantity of different size of dust and it can be converted to μg/m3 according to the mathematical algorithm and output μg/m3 directly.
The range of particle can be measured from 0.3 to 10μm. It can provide two types of optional signal output and has a unique start-up self-calibration function. The sensor consists of a laser emission module and a light detection lens. It is crossed and placed inside the structure.
The sensor has good consistency, stability, small size and easy integration. The sensor can be embedded in various instruments or devices related to particulate matter concentration to provide accurate real-time data.
| Item | Min | Typ | Max | Unit |
| Detection size | 1.0 | 2.5 | 10 | μm |
| Concentration range | 0 | - | 999 | μg/m3 |
| Resolution | - | 1 | - | μg/m3 |
| Source Voltage | 4.90 | 5 | 5.10 | V |
| IO LEVEL | 2.7 | 3.3 | 3.6 | V |
| Current | - | - | 70 | mA |
| Response Time | 0 | 5 | 10 | S |
| Operating Temperature | -10 | 25 | 60 | ºC |
| Storage Temperature | -30 | 25 | 80 | ºC |
| Operating humidity (Non-Condensing) | 5% | 40% | 80% | RH |
| Storage humidity (Non-Condensing) | 0% | 40% | 95% | RH |
| Accuracy(0~100 ug/m3) | - | ±10 | - | ug/m3 |
| Accuracy(≥100 ug/m3) | - | ±10% | - | ug/m3 |
