Basic Info.
Application
Industrial Production
Type
Vortex Flow Meter
Measuring Media
Liquid, Gas, Steam
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
SGS
Output Type
Pulse, 4-20mA, RS485 and GPRS, Hart
Power Supply Type
Battery or 24 V DC
Transport Package
Carton Packing
Specification
68*27*28cm
Trademark
kunkeandao
Origin
Weihai
HS Code
9026100000
Production Capacity
3000 Pieces/Year
Product Description
Features
1. Sonic nozzle calibration, high repeatability and high measurement accuracy;
2. Freely select temperature compensation and pressure temperature for more on-site use;
3. The circuit board is aging before leaving the factory, and the whole table is calibrated one by one, which is more suitable for field use;
4. Wide range of applications, gas, liquid and steam can be metered;
5. Low pressure loss, low energy loss, and energy saving;
6. Simple and firm structure, no moving parts, high reliability, low maintenanc.
1. Sonic nozzle calibration, high repeatability and high measurement accuracy;
2. Freely select temperature compensation and pressure temperature for more on-site use;
3. The circuit board is aging before leaving the factory, and the whole table is calibrated one by one, which is more suitable for field use;
4. Wide range of applications, gas, liquid and steam can be metered;
5. Low pressure loss, low energy loss, and energy saving;
6. Simple and firm structure, no moving parts, high reliability, low maintenanc.

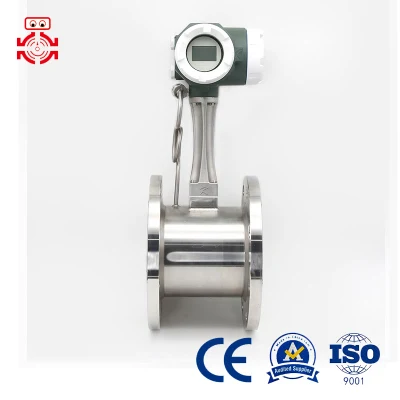

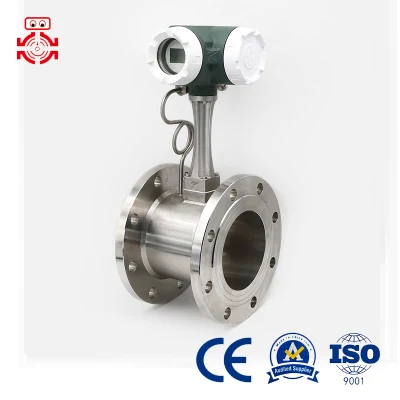

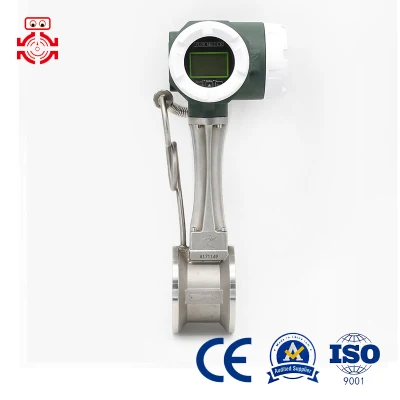

LUGB vortex flow meter can achieve the following functions according to the selection:measuring the Pressure
temperature, instantaneous flow and cumulative flow of medium fluid in industrial pipelines, and has pulse output,
4-20mA analog signal output, RS485 communication (Modbus RTU protocol), GPRS of Internet and other functions.
temperature, instantaneous flow and cumulative flow of medium fluid in industrial pipelines, and has pulse output,
4-20mA analog signal output, RS485 communication (Modbus RTU protocol), GPRS of Internet and other functions.
Technical Parameters
| Diameter(mm) | 15,20,25,32,40,50,65,80,100,125,150,200,250,300,(300~1000 plug-in) |
| Nominal pressure(MPa) | DN15-DN200 4.0(>4.0,Supply agreement)DN250-DN300 1.6(>1.6,Supply agreement) |
| Medium temperature(ºC) | Piezoelectric type :-40~150ºC,-40~250ºC,-40~330ºC; Projected Capacitive:-40~400ºC(Supply agreement) |
| Body material | 1Cr18Ni9Ti(Other material order by agreement) |
| Permissible vibration acceleration | Piezoelectric type :0.2g Projected Capacitive:1.0-2.0g |
| Accuracy | ±1%R,±1.5%R;plug-in:±2.5%R |
| Range of degrees | 1:6~1:25 |
| Power Supply | Sensor:DC+12V,DC+24V;Transmitter:DC+12V,DV+24V;Battery-powered:3.6V |
| Output signal | Pulse:high level:≥5V low level:≤1V;electricity current:4~20mA |
| Pressure loss coefficient | Comply with JB/T9249 standard Cd≤2.4 |
| Explosion-proof coefficient | Intrinsic safety :Ex ia II CT2-T4 Explosion-proof type:Exd II CT2-T5 |
| Level of protection | Ordinary type:IP65 Diving type:IP68 |
| Environmental conditions | Tempersature:-20ºC~55ºC,relative humidity 5%~90%,atmospheric pressure:86~106kPa |
| Applicable medium | gas ,liquid,steam |
| Transmission distance | Three-wire pulse output:≤300m,Two-wire standard current output:(4~20mA)≤1500m load resistance≤500Ω;RS485/HART≤1200m. |
