Basic Info.
Model NO.
SR-802PC-4
Static Current
12mA(Nc);500ua(No)
Alarm Current
10mA(Nc);18mA(No)
Sensitivity
0.5dB/M(±0.01dB/M)
Alarm Output
Relay Output
Installation
Ceiling Mounted
Dimension
104*49mm
Sensor
Wholesale 4 Wire Conventional Optical Smoke and Fi
Transport Package
Carton
Specification
ABS
Trademark
SUMRING
Origin
China
HS Code
8531901000
Production Capacity
50000 PCS/Month
Packaging & Delivery
Package Size
10.60cm * 10.60cm * 6.00cm
Package Gross Weight
0.250kg
Product Description

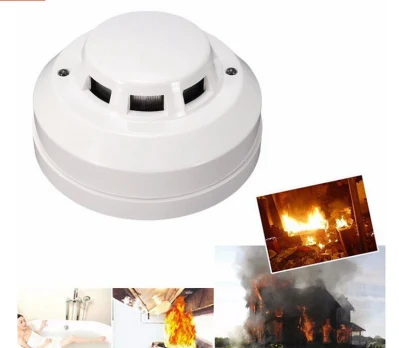

Wholesale 4 Wire Conventional Optical Smoke and Fire Sensor/Detector
Smoke Detector
SR-802PC-4: 4-Wire Network Photoelectric smoke alarm
Main Features:
Power supply non-polar input
Infrared photoelectric sensor
MCU processing, eliminate false alarm
SMT manufacture technology, high stability
Dustproof, mothproof, anti-light interference design
Stainless steel shield, anti-RFI(20V/m-1GHz)
Execute criterion:UL268, GB4715, EN54-7
Technical specification:
Model No. | SR-802PC-4 | |
Operating voltage | DC9~35V | |
Static current | 12mA(NC);500uA(NO) | |
Alarm current | 10mA(NC);18mA(NO) | |
Sensitivity | 0.5dB/m(±0.01dB/M) | |
Alarm output | Relay output | |
Installation | Ceiling mounted | |
Working environment | -10ºC~+50ºC(≤95%RH No congelation) | |
Dimension | 100*48mm (SR-811) | |
