Basic Info.
Model NO.
RAY-LH343#
Core
Single-Core,Multi-Core, Double-Core
Certification
RoHS, CE, ISO9001, VDE, CCC
Brand
Raytek
Sheath Material
Customized
Type of Quartz Optical Fiber
Hcs/Silicon-Silicon
Diameter of Single Fiber (GM)
125/200/230/400/500/600/800,etc
Transmission Spec-on Initialization Time
200-2500nm
Numerical Apertpulse Width Shrinkage (Dd
0.22, 0.37,etc
Transport Package
1PCS Per Box
Specification
custom as per demand
Trademark
Raytek
Origin
China
HS Code
8536700000
Production Capacity
100, 000, 0PCS Per Year
Product Description
General Introduction:
Optical fiber bundle, as the name suggests, is the pigtail of multi-core bundle, ranging from 4-core, 8-core, 12 core to 96 core; It solves the problems of insufficient protection of bundle tail fiber to fiber core and fixed termination when the optical cable is terminated, replaces the single connector termination which is widely used at present, and saves the optical cable terminal box. In addition, some of the bundled optical fibers are photoelectric combined cables, which solves the current power supply problem of terminal access, such as compartment remote module, terminal ONU equipment, etc.
Cluster optical fiber refers to the optical fiber directly connected with the equipment or desktop computer to facilitate the connection and management of the equipment. It is used as the jumper from the equipment to the optical fiber wiring link. It has a thick protective layer and is generally used for the connection between the optical transceiver and the terminal box.
Fiber optic patch cords are similar to coaxial cables, except that there is no mesh shield. The center is the glass core of light propagation. In multimode fiber, the diameter of the core is 15 μ m~50 μ m. Roughly the same thickness as human hair. The diameter of single-mode fiber core is 8 μ m~10 μ m. A glass envelope with a lower refractive index than the core is surrounded outside the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.
Products Name:
Optical Fiber Bundle
Product Category:
Applications:
Basic Technical Data:
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
Optical fiber bundle, as the name suggests, is the pigtail of multi-core bundle, ranging from 4-core, 8-core, 12 core to 96 core; It solves the problems of insufficient protection of bundle tail fiber to fiber core and fixed termination when the optical cable is terminated, replaces the single connector termination which is widely used at present, and saves the optical cable terminal box. In addition, some of the bundled optical fibers are photoelectric combined cables, which solves the current power supply problem of terminal access, such as compartment remote module, terminal ONU equipment, etc.
Cluster optical fiber refers to the optical fiber directly connected with the equipment or desktop computer to facilitate the connection and management of the equipment. It is used as the jumper from the equipment to the optical fiber wiring link. It has a thick protective layer and is generally used for the connection between the optical transceiver and the terminal box.
Fiber optic patch cords are similar to coaxial cables, except that there is no mesh shield. The center is the glass core of light propagation. In multimode fiber, the diameter of the core is 15 μ m~50 μ m. Roughly the same thickness as human hair. The diameter of single-mode fiber core is 8 μ m~10 μ m. A glass envelope with a lower refractive index than the core is surrounded outside the core to keep the optical fiber in the core. On the outside is a thin plastic jacket to protect the envelope.
Products Name:
Optical Fiber Bundle
Product Category:
| Optical Fiber Bundle | 1). | Projector Fiber Bundle |
| 2). | Laser Direct Imaging Fiber Bundle | |
| 3). | UV-Curing Optical Fiber Bundle | |
| 4). | Biochemical Optical Fiber Bundle | |
| 5). | Flame Detection Fiber Bundle | |
| 6). | Multicomponent Glass Optical Fiber Bundle | |
| 7). | Customized Optical Fiber Bundle |
Applications:

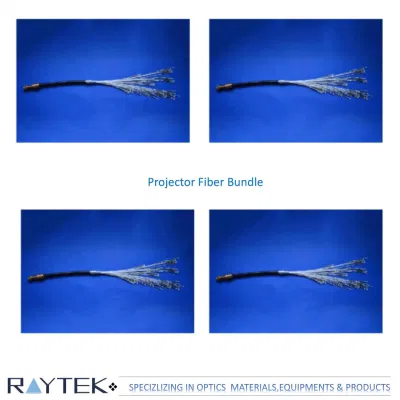

| 1). | Projector Fiber Bundle | Projector fiber is used in laser projector. It collect multiple LDs to be one laser source and make the transmittance reach above 95%. So this kind of laser projector can show a high quality and brightness image. Meanwhile the light source has been separated from the projector that is easy to maintain and extend using time. |

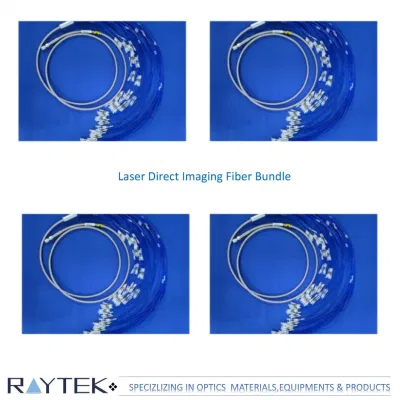

| 2). | Laser Direct Imaging Fiber Bundle | LDI Fiber is used in the field of exposure machine in LDI circuit board, with the ukraviolet laser, to replace of meivury lamp for long service life, no need to diange the light source. steady technique, maintenance free, non-pollution. It can be applied to a varieKrof electrical equipment, such as, high precision printed circuit board (PCB), photo etching machine (single and douNe sided printed, full-automatic), two-side LDI dectncal equipment, integrated circuit chip of high daiaty electrical equipment/3D packaging digital photo etching machine . from red to reel flexible printed laser direct exposure machiner touch screen direct exposure machine, Precision Optical mask and metal mask laser direct exposure machine, TFT (Thin Film Transistor) / OLED (Organic Light-Emitting Diode) display digital photo etching machine electrical equipment, semiconductor mask aligner, etc. We have made a lot of targeted des dopment and improvement in this held, outstanding performance, wll received by the trust of customers. |
| 3). | UV-Curing Optical Fiber Bundle | UV-curipg optical fiber bundle is used in fast curing of UV-ctiring resin or adhesive. It's made by HCS quartz fiber with excdient UV transmission performance. As customers reqinronent, we can produce various branch structures such as 1-in-1-out / 1-in-multiple-out / multiple-in-1-out / multiple-in-multiple-out. and various output form such as circle/sqiiare/line, and we also can piwide all kinds of standaid or nonstandard end structures. |

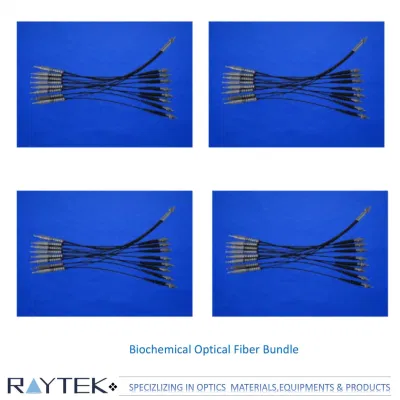

| 4). | Biochemical Optical Fiber Bundle | Biodiemical optical fiber bundle is used inbiochonical detection for transporting illuminating light and light signal Our fiber bundle not only just transport tight from one light source to multiple sample cells, and transport the return light sigpal from the sample cdls to the detector in one bundle. We can customize the bundle as requirement, or if client only ghe us an idea we even can help disign the bundle that meet their needs. Our fiber bundle got great praise from the customers. |

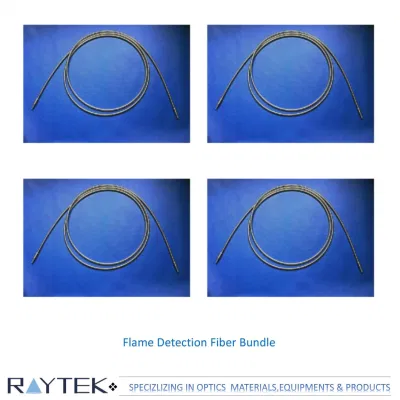

| 5). | Flame Detection Fiber Bundle | Customize optical fiber is a kind of optical fiber that is used in industry/ Medical/ detection etc. According to customer's requirements, we can customize optical fiber product, transmission spectrum range from UV to IR. customize length, branch and end structure. |

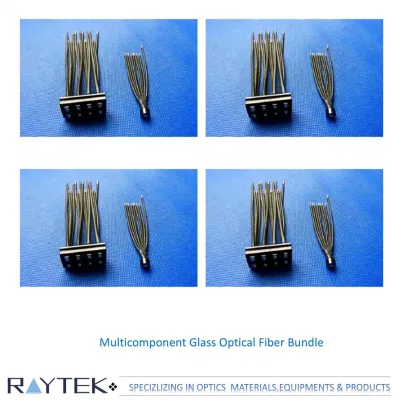

| 6). | Multicomponent Glass Optical Fiber Bundle | |
| 7). | Customized Optical Fiber Bundle |
Basic Technical Data:
| Type of quartz optical fiber | HCS/Silicon-silicon |
| Diameter of single fiber (gm) | 100/125/200/300/400/600/800,etc |
| Length (m) | Customize |
| Diamenter of Spot(mm) | Customize |
| Transmission Spectrum (nm) | 200-1100 350-1700 400-2500 Customized |
| Numerical Aperture (NA.) | 0.22 0.37 Customized |
| Transmittance of Bundle | >=65%(632.8nm) |
| Branch Structures | 1-in-1-Out 1-in-Multiple-Out Multiple-in-1-Out multiple-in-Multiple-Out or other customized structures |
| Output Form | Circle/Square/Line or other customize form |
| End Structure | SMA905/SMA906/FC/ST and others SMA905/SMA906/FC/ST and other customize structure Hoya/Hamamatsu/Matsushita/ZhiDa/EXFO/SAM905/FC/ST or other customize structure |
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Mexico, Brazil, Argentina,Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optical fiber products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.
